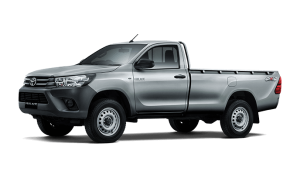

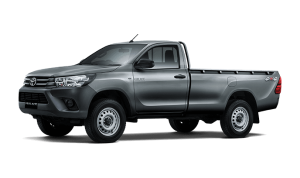

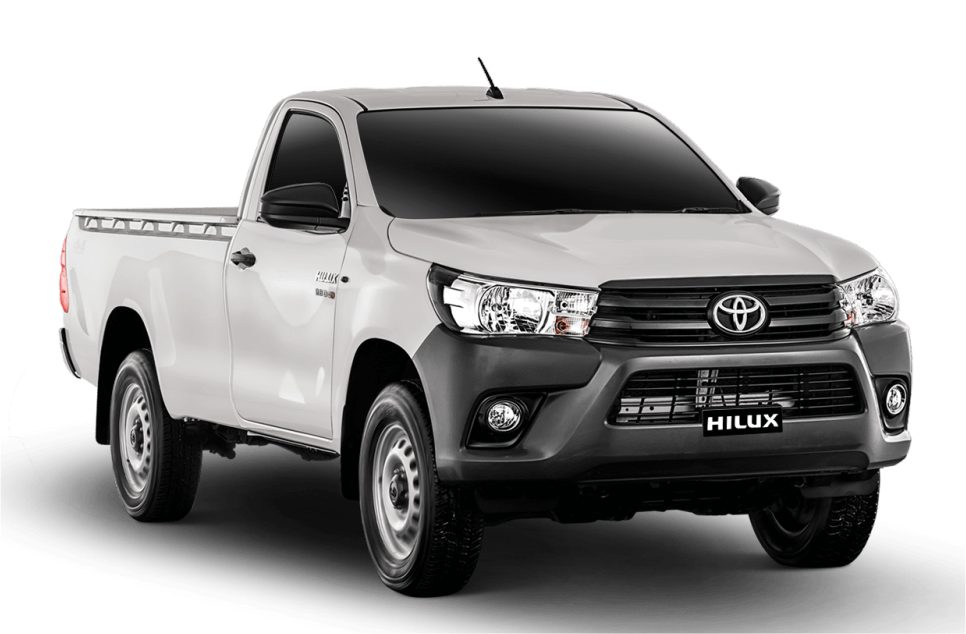

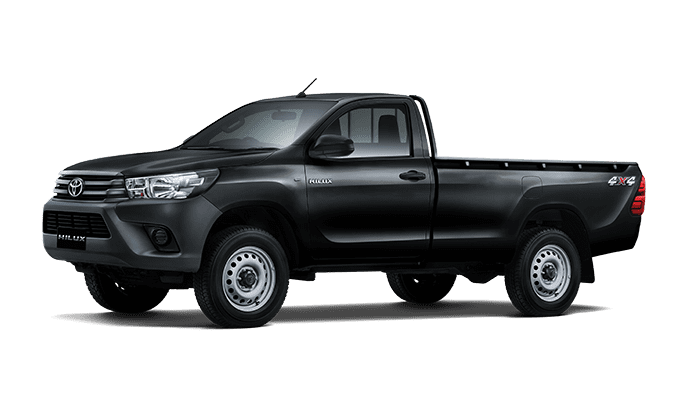

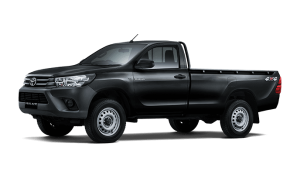

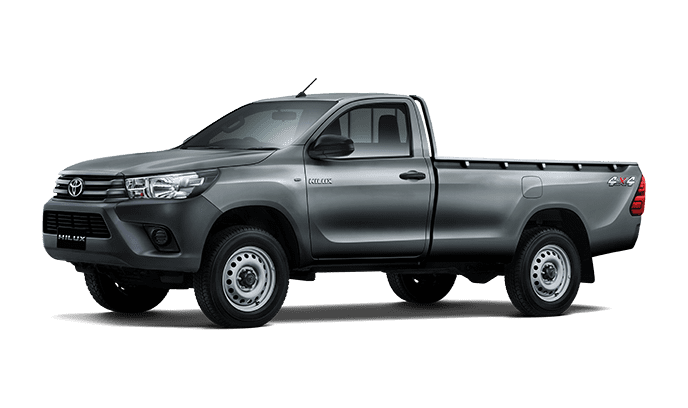

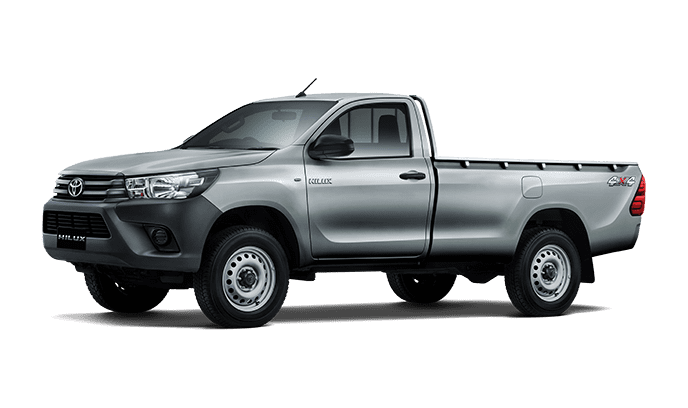

Spesifikasi Hilux S Cabin
| Dimensi | |
| Overall Panjang / Length | 4.935 |
| Overall Lebar / Width | 1.800 |
| Overall Tinggi / Height | 1.685 |
| Jarak Poros Roda / Wheelbase | 2.750 |
| Jarak Pijak / Tread (Depan / Front) | |
| Jarak Pijak / Tread (Belakang / Rear) | 1.510 |
| Ukuran Dek / Deck Size (Panjang / Length) | 1.980 |
| Ukuran Dek / Deck Size (Lebar / Width) | 1.575 |
| Ukuran Dek / Deck Size (Tinggi / Height) | 480 |
| Berat Kosong / Curb Weight | 1.538 |
| GVW | 2.640 |
| Chasis | |
| Sistem Kendali / Drive System | 2WD |
| Transmisi / Transmission | 5 M/T |
| Perbandingan Gigi / Gear Ratio (1st) | 4.313 |
| Perbandingan Gigi / Gear Ratio (2nd) | 2.330 |
| Perbandingan Gigi / Gear Ratio (3rd) | 1.436 |
| Perbandingan Gigi / Gear Ratio (4th) | 1.000 |
| Perbandingan Gigi / Gear Ratio (5th) | 0.838 |
| Perbandingan Gigi / Gear Ratio (Reverse) | 4.220 |
| Perbandingan Gigi / Gear Ratio (Differential Gear Ratio) | 4.555 |
| Suspensi / Suspension (Depan / Front) | Double Wishbone |
| Suspensi / Suspension (Belakang / Rear) | Leaf Spring Rigid Axle |
| Sistem Kemudi / Steering Gear | Rack & Pinion |
| Sistem Rem / Brake System (Depan / Front) | 15″ Ventilated Disc |
| Sistem Rem / Brake System (Belakang / Rear) | Leading Trailing Drum |
| Velg dan Roda / Tire & Wheels | 205/70 R15 Steel |
| Roda Cadangan / Spare Tire | 205/70 R15 Steel |
| Mesin | |
| Tipe Mesin / Engine Type | 1TR-FE, 4 Cylinders, In-Line 16 Valve DOHC Dual VVT-i |
| Bore x Stroke | 86.0 x 86.0 |
| Isi Silinder / Displacement | 1.998 |
| Maximum Power (ps/rpm) | 139/5.600 |
| Maximum Torque (kgm/rpm) | 18.7/4.000 |
| Fuel System | Fuel Injection |
| Fuel Type | Gasoline |
| Fuel Tank Capacity (L) | 65 |
*Spesifikasi merupakan Spesifikasi tipe tertinggi
